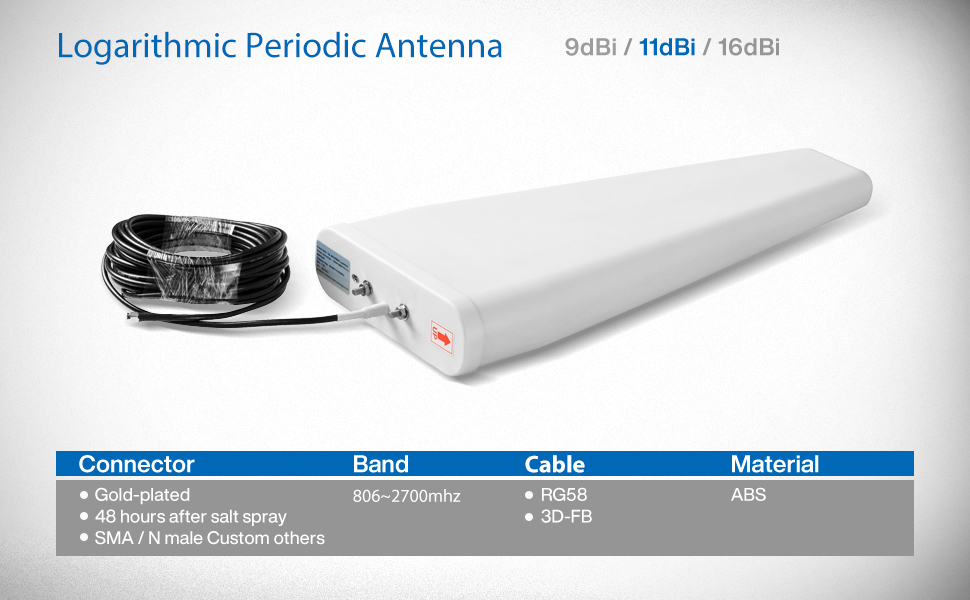

High Gain 11dBi Signal Broadband 698-2700 MHz Log Periodic Antenna for 4G 5G network

Name: High Gain 11dBi Signal Broadband 6982700 MHz Log Periodic Antenna for 4G 5G network
Brand: Comelink
Price: 7.98 USD

Buy cheap High Gain 11dBi Signal Broadband 698-2700 MHz Log Periodic Antenna for 4G 5G network product

Brand Name : Comelink

Model Number : 11dBi antenna

Certification : ROHS/ISO9001/CE

Place of Origin : CHINA

MOQ : 10 PCS

Price : USD+7.98+PCE

Payment Terms : D/A, L/C, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000+pcs+week

Delivery Time : 7

Packaging Details : Carton

Frequency : 698-960/1710-2690 MHz

Gain-dBi : 11 dBi

cable Material : Cu

length : 10M or Custom

Antenna Cove Material : PVC

Size : 450*210*65

Contact Now

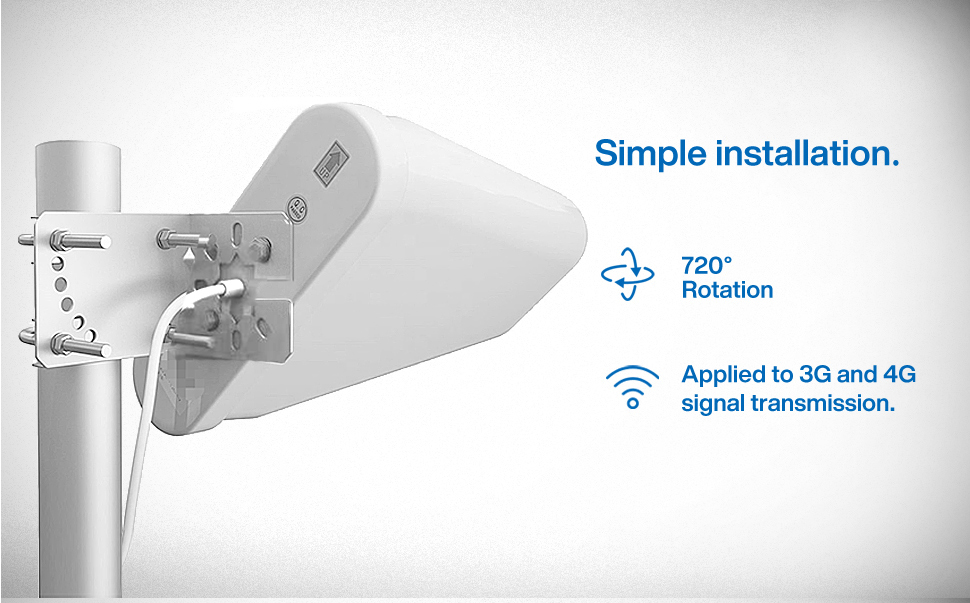

The log periodic antenna can be used at a variety of frequencies and elevation angles, and the installation accessories are perfect, the waterproof performance is good, it is an omnidirectional antenna, but it also has a large radiation force, but considering the radiation to the human body, it can basically be ignored.

High Gain 11dBi Signal Broadband 698-2700 MHz Log Periodic Antenna for 4G 5G network

Specification:

Electrical Specifications(11DBi)
Frequency Range	806~960/1710·2700
Gain(dB)	11
Bandwidth(MHz)	154/990
Half-Power Bean width	H:90/70 V:60/55
V.S.W.R	＜1.5
Impendance	50Ω
Polarization	Vertical
Cable	3D-FB
Connector	SMA
Radome Material	ABS

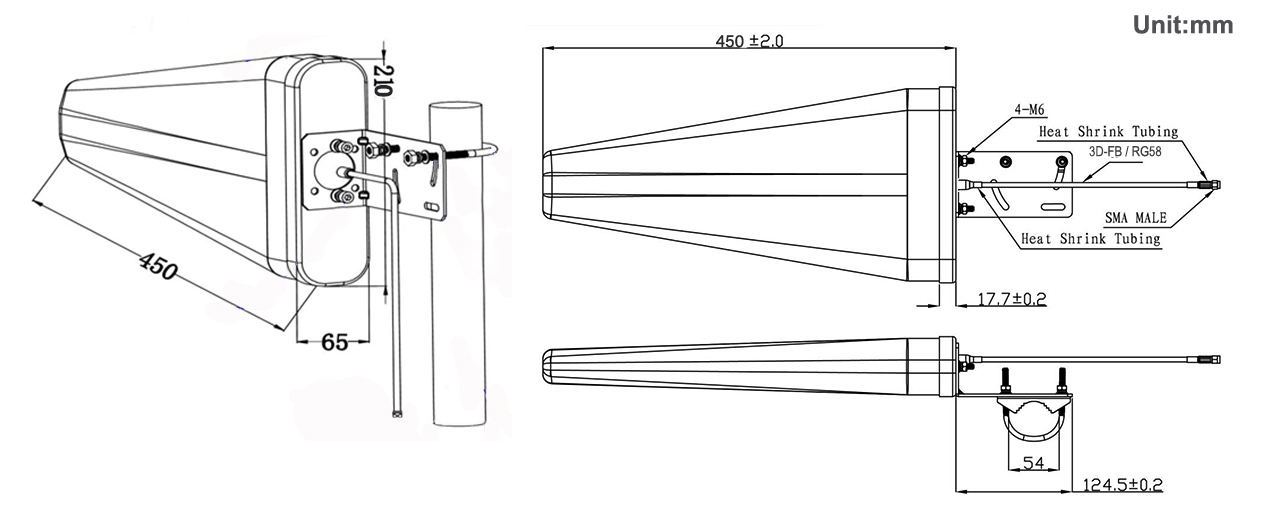

Demensions(mm)	45021065

High Gain 11dBi Signal Broadband 698-2700 MHz Log Periodic Antenna for 4G 5G network

Tips :

1.The LPDA Antenna can make full 4G frequency:698-960/1710-2698MHz,also can make 5G frequency,just feel free to tell me your frequency !
2.The cable type and length is customized,you can make LMR240/LMR200 cable for 30cm or for 10M/15M.
3.The connector type also customized,you can make N male ,SMA male,FME male,or any other connector,just tell me.
4.The Antenna is single box package,if you want to save the delivery cost ,we can pack with PE bag,it can help save your ship cost.
5.For big orders,we accept customized logo on Antennas or customized the package.

High Gain 11dBi Signal Broadband 698-2700 MHz Log Periodic Antenna for 4G 5G network Images
