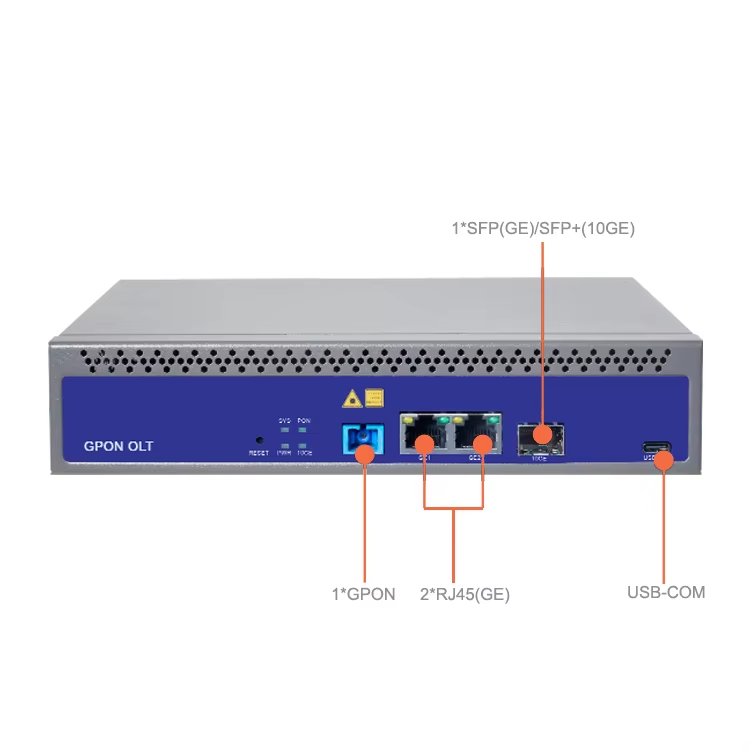

It is a box-type GPON OLT with one PON port (built in PON module), 2 1000M RJ45 uplink and 1 10G SFP+ uplink. The splitting ratio support maximum 1:128,maximum distance is 20KM. Its uplink and downlink bandwidth is as high as: 1.25Gbps/2.5Gbps.It can be widely used in FTTH, SOHO, small business office and other application scenarios..
The OLT integrates with network security, supports data, voice and video, and provides continuous forwarding, graceful
restarting and ring protection, improving the work efficiency and securing the maximum running time.
Small size and high density OLT, easy to install, convenient, flexible and easy to deploy high performance broadband
access network. It can be deployed in compact room environment, and can also be used for “Triple-Play” VPN, IP Camera, Enterprise LAN and ICT applications.
Feature
1PON,maximum 128 users
Compliant with ITU-T G984/G.988 standards and China Telecom GPON Technical Requirements
Friendly EMS/Web/Telnet/CLI management Support other brands GPON and XPON ONUs Support 4096 VLANs, port VLAN and protocol VLAN;
Support storm control based on port; Support port isolation,port rate limitation;
Support static LACP;QoS based on port, VID, TOS and MAC address;
Access control list;
Support IGMP snooping, 256 IP Multicast Groups,DHCP snooping
Support data encryption, multi-cast, port VLAN, separation, RSTP, etc
Support broadcasting storm resistance function; Support port isolation between different ports;
Support ACL and SNMP to configure data packet filter flexibly;
Support RSTP,IGMP Proxy;
Support Dynamic Bandwidth Allocation (DBA)
Support ONU auto-discovery/link detection/remote upgrade of software
Application
|
|
Original Vsol V1600GS Support 128 ONU 10GE PON Mini OLT 1 Port VSOL OLT GPON OLT Images
|
