Comelink QSFP56-200G-SR4M 200G QSFP56 SR4 PAM4 850nm 100m MTP/MPO APC OM3 FEC Optical Transceiver Module

Name: Comelink QSFP56200GSR4M 200G QSFP56 SR4 PAM4 850nm 100m MTPMPO APC OM3 FEC Optical Transceiver Module
Brand: Comelink
Price: 130 USD

Buy cheap Comelink QSFP56-200G-SR4M 200G QSFP56 SR4 PAM4 850nm 100m MTP/MPO APC OM3 FEC Optical Transceiver Module product

Brand Name : Comelink

Model Number : QSFP56-200G-SR4M

Certification : ROHS/ISO9001/CE

Place of Origin : China

MOQ : 1 PC

Price : USD 130 PCE

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Delivery Time : 3-5 workdays

Part Number : QSFP56-200G-SR4M

Form Factor : Twin-port OSFP

Max Data Rate : 200Gbps

Wavelength : 850nm

Max Distance : 100m

Connector : MPO-12

Warranty : 3 Years

Package Dimensions : 5.12 x 3.54 x 1.57 inches

Contact Now

200G QSFP56 SR4 PAM4 Optical Transceiver Module (850nm MTP/MPO-12 OM3/OM4 100m with FEC DDM)

Feature:

Built-in Marvell DSP Chip, Max Power Consumption ≤5W.
Provide Professional Compatibility and Parameter Test Reports.
Compliant with Hot Pluggable QSFP-DD MSA, IEEE 802.3bs Standard.
Class1/1M Standard Product, Compliant with RoHS Environmental Protection Standards (Lead-Free).
DDM(Digital Diagnostic Monitoring) Supported.
30-Day Free Return, 1-Year Free Replacement, 3-Year Warranty, Lifetime After-sales Technical Support.

Quality Assurance

Excellent quality is the foundation of Comelink's survival and development. Our operation team are experts with many years' experience in the optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Specificiation

P/N	QSFP56-200G-SR4M	Vendor Name	Comelink
Form Factor	QSFP56	Max Data Rate	212.5Gbps
Wavelength	850nm	Max Distance	70m on OM3/100m on OM4
Modulation Format	PAM4	Host Required	FEC
Connector	MTP/MPO-12	Voltage Supply	3.3V
Cable Type	MMF	DDM Support	Yes
Transmitter Type	850nm VCSEL	Receiver Type	PIN
TX Power	-6.5~+4.0dBm	Receiver Sensitivity	< -8.4dBm
Operation Temperature	0 to 70°C (32 to 158°F)	Maximum Power	< 5W
Protocols	QSFP56 MSA, IEEE 802.3bs	Application	200G InfiniBand HDR,200G Ethernet Data Center Interconnect

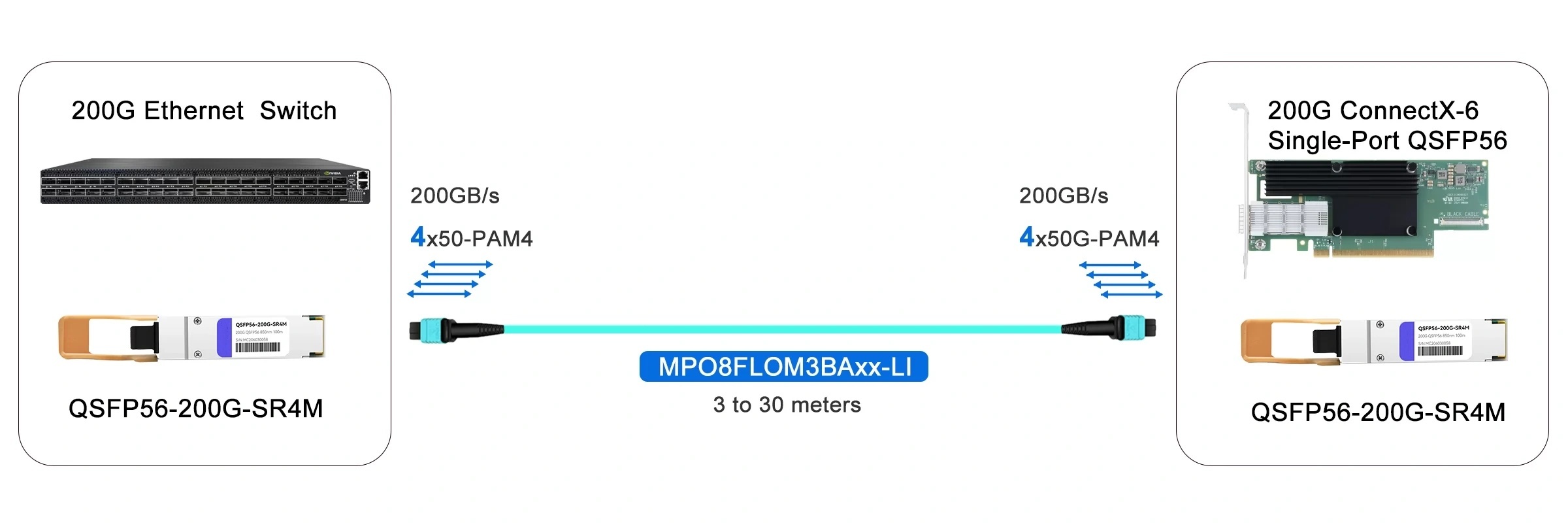

Application:

Comelink QSFP56-200G-SR4M 200G QSFP56 SR4 PAM4 850nm 100m MTP/MPO APC OM3 FEC Optical Transceiver Module

Comprehensive Testing Increases Reliability

Qualified through a rigorous process with advanced equipments to ensure you get the high quality and reliable optics.

Comelink QSFP56-200G-SR4M 200G QSFP56 SR4 PAM4 850nm 100m MTP/MPO APC OM3 FEC Optical Transceiver Module

Unleash HPC Power with InfiniBand Architecture

We provides the Infiniband network solution, offering significant advantages in terms of high-speed, low latency, scalability, and efficiency.

Comelink QSFP56-200G-SR4M 200G QSFP56 SR4 PAM4 850nm 100m MTP/MPO APC OM3 FEC Optical Transceiver Module

Flat Top OSFP Connector Shell

The OSFP shell has a flat top and is used in adapters, such as ConnectX-7 InfiniBand Adapter Cards.

Comelink QSFP56-200G-SR4M 200G QSFP56 SR4 PAM4 850nm 100m MTP/MPO APC OM3 FEC Optical Transceiver Module Images
