8-Port Gigabit Ethernet L2+ PoE+ Switch, 8 x PoE+ Ports 130W, with2 x 1Gb SFP, Fanless
8-Port Managed PoE+ Switch is equipped with 8x 10/100/1000BASE-T ports, 2x 1Gb SFP uplinks, 8x RJ45 ports support both IEEE 802.3af PoE and IEEE 802.3at PoE+ (up to 30W per port) for powering attached IP phones, wireless access points, or other standards-compliant PoE and PoE+ end network devices. 2x SFP uplink ports are provided to support connections to higher layer devices.
Highlights:
Up to 8 PoE+ Ports, Total Budget 130W
Fanless Design, Always Working Silently
Support ERPS, QoS, OSPF, L2 Multicast Functions, DHCP Server, RIP
Support SSH, ACL, AAA, 802.1X, RADIUS, TACACS+, etc. for Security
Advanced Network Monitoring Using SFlow
Support WEB/CLI/SNMP/SSH for Flexible Operation
Specification:
Ports
8x 10/100/1000BASE-T RJ45 | 2x 1G SFP
Total Number of IPv4 Routes
128
Switching Capacity
20 Gbps
Input Range
100-240VAC, 50-60Hz
Max. Power Consumption
9.2W (130W with PoE)
PoE Standard
IEEE 802.3af/at
Operating Temperature
0 to 50ºC (32 to 122°F)
Storage Temperature
-20 to 70ºC (-4 to 158°F)
Mounting Methods
Rackmount
Dimensions (HxWxD)
1.73''x11.02''x7.08'' (44x280x180mm)
Application:
Feature:
Smart PoE+ Support
Compliant with IEEE 802.3af/at PoE standards, it can automatically detect and provide the required power for your PoE devices, which can deliver up to 15.4W and 30W power per port.
OSPF (Open Shortest Path First) for Simplified Network Management
OSPF simplifies topologies by splitting autonomous systems into areas, automatically calculates and renews the shortest path, and transmits link status information, reducing labor hours.

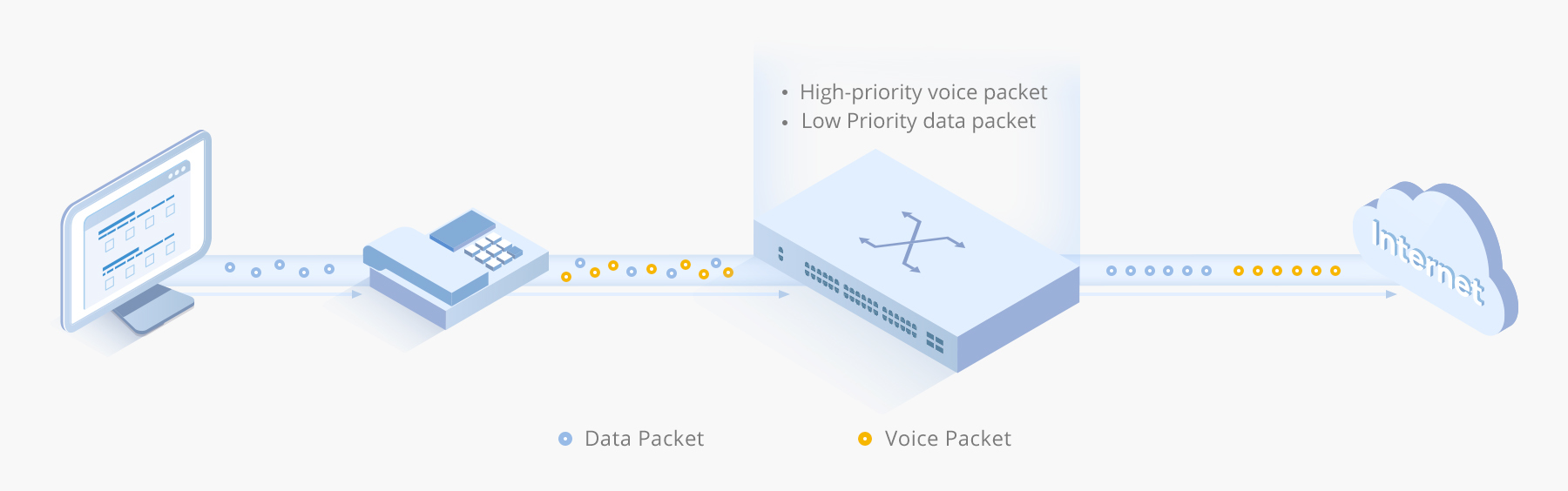

Voice VLAN Gives Priority to Guaranteeing VoIP Quality
Voice VLAN improves voice traffic transmission priority and guarantee voice quality by assigning voice traffic to a dedicated VLAN without competing with other traffic.
|
|
Comelink 8-Port Gigabit Ethernet L2+ PoE+ Switch, 8 x PoE+ Ports 130W, with 2 x 1Gb SFP, Fanless Images
|
